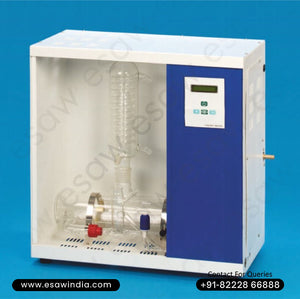

This is a fully automatic water distillation equipment and can be used in research laboratories, hospitals etc. It is manufactured from 3.3 exp borosilicate glass or quartz glass. The distillation has following features :
•    Replaceable Silica Sheathed (Quartz) Heater : The horizontal jacket is fitted with removable silica sheathed heater and screw threaded connectors for ease of cleaning.
•    Distillate temperature is approx. between 25° to 45° C which is ensured by an efficient condenser.
•    The stand is powder coated for rust free operation and lustrous appearance.
•    Cooling water from the condenser is re-circulated into the boiling chamber, hence saving energy.
•    Screw Threaded Connectors : These are provided for easy plumbing at Installation to avoid any glassware breakage during assembly.
•    Fuse is provided for safety in case of voltage fluctuation or short circuit.
•    Boiler is provided with Replaceable Constant Level Device for easy draining and cleaning of boiling chamber.
•    The front cover is easily removable making the access to the glass parts very easy.
•    Electrical Power : 220/240 V, 50/60 Hz, Single Phase Supply

Additional Built-in Safety Features

•    Gate Valve : Conserves cooling water wastage in case of power failure.
•    Flow Switch :In-built safety feature for the equipment unit shut off in case of cooling water failure.
•    Temperature Switch : The boiler is equipped with a safety temperature switch which shuts off the unit if water level in the boiler falls below the heater, thus saving the glass parts from any damages.
•    Level Sensor : It shuts off the distillation equipment if the water level in the boiler falls below the heater.
•    Reservoir Level Sensor : This helps in automatic working of the water distillation equipment. Depending on the water level in the reservoir it will automatically switch On/Off the equipment, thus             saving energy.
