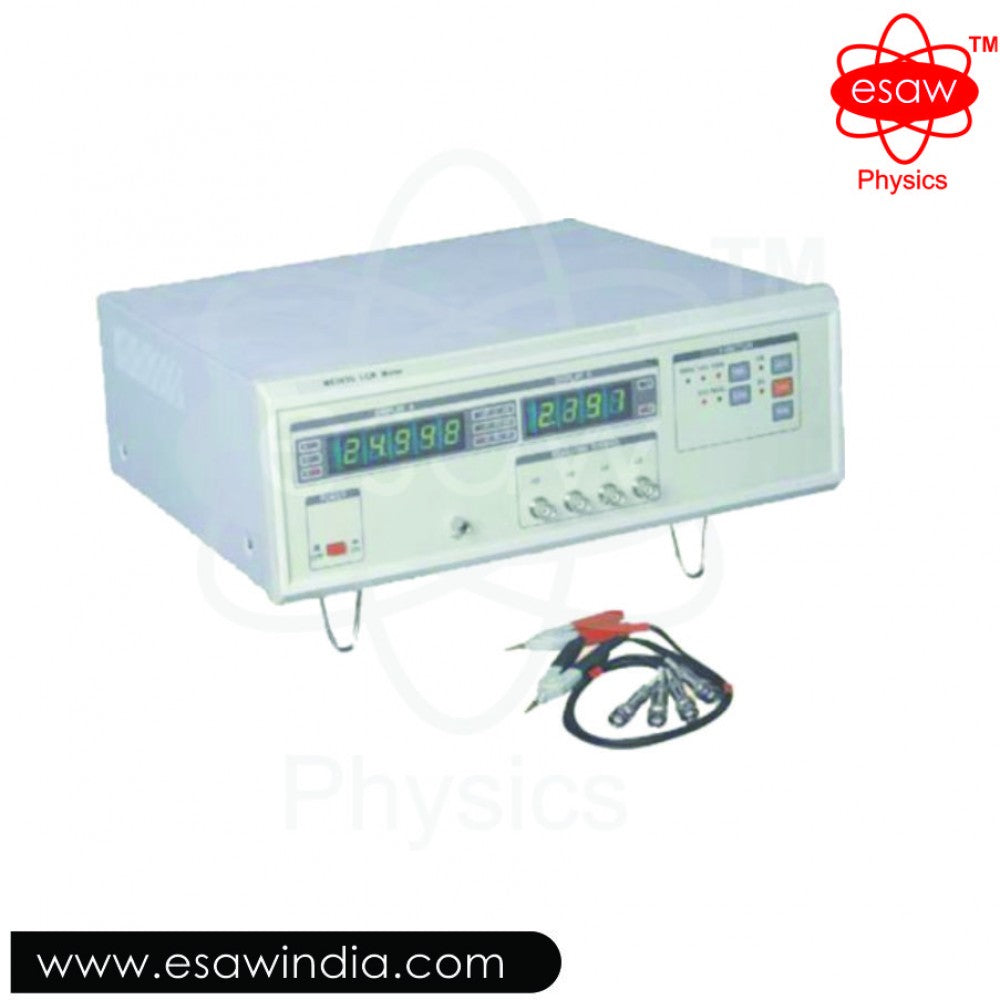

10971 - ESAW Digital LCR Meter

                                Technical Specifications:                                 Measuring Parameters : L-Q,C-D,R-Q R:0.0001W - 99.99 MW            Test Frequency       : 100 Hz, 1 kHz, 10 kHz 5 C: 0.01 pF -19999 pF            Level                : o3vims                                 Accuracy             : 0.25% c L:0.01 HH - 9999 H              Display Range        : R 0.0001W -99.99 MW T D : 0.0001 - 9.999                                    C 0.01 pF -19999 uF R

Q:0.01-9999                                            L:0.01 HH - 9999 H

                                                                                                              D : 0.0001 - 9.999

                                                                                                              Q:0.01-9999

                                Sampling Rate         : 5 times/sec.

                                Equivalent Circuit     Series, Parallel                                 Test Mode              Auto, Hold                                 Calibration            Open circuit, Short circuit and Zeroing Test Ports, 5 terminals
 Display Mode Direct readout                                 Operating Ambient      °C - 40°C, =90% RH

                                Power                  AC110V or 220V + 10% , 50/60Hz                                 Power Consumption      20VA                                 Dimension              350 mm x 110 mm x 340 mm
