Dispensing Booth

Dispensing Booth

Model No : DB-226

Shipping calculated at checkout.
Quantity:
Estimated Delivery:
Get It Today

Free shipping

Free shipping on orders over $75.

100 - Day Returns

Not impressed? Get a refund. You have 100 days to break our hearts.

Dedicated Support

Support from 8:30 AM to 10:00 PM everyday

Quantity:
Description

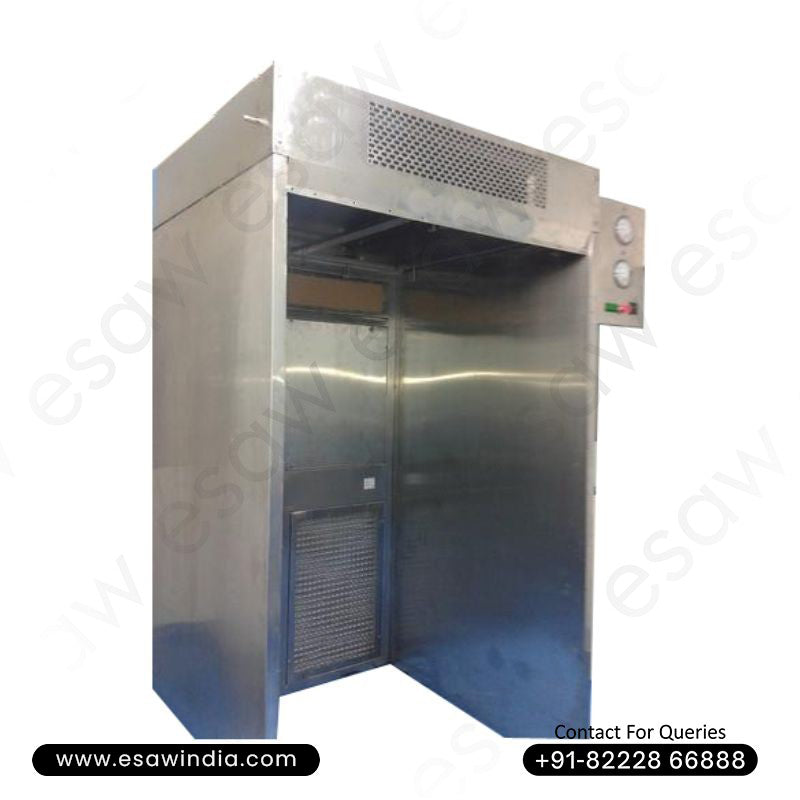

    Dispensing booth is a kind of laminar flow filtration cabin which is employed in dispensing, sampling and weighing of powders and chemicals in pharma, biotech and chemical industries. Such units work on reverse laminar flow working principle and provide protection to operators, products / samples and surrounding environment.

    Dispensing booth is usually made of stainless steel and equipped with three stage filtration (10µ Pre-filter, 310µ Intermediate and 0.310µ HEPA Filter) with the help of motor blower assembly. In order to measure the pressure of HEPA filter, magnehelic gauges are fitted. Pre-filters are washable.

    Product Information

    Model No. DB-226 DB-326 DB-426 DB-336 DB-436 DB-446 DB-626 DB-646 DB-666
    Dimensions In MM 610 x 610 x 1828 914 x 610 x 1828 1219 x 610 x 1828 914 x 914 x 1828 1219 x 610 x 1828 1219 x 1219 x 1828 1828 x 610 x 1828 1828 x 1219 x 1828 1828 x 1828 x 1828
    CONSTRUCTION Ss304 / Ss316
    AIR FLOW Recirculating laminar air flow
    AIR VELOCITY 90 ± 20 cfm (Average)
    BLOWER UNIT Heavy duty motor blower assembly
    ILLUMINATION 1, 2 or 3 or as required Tube lights
    POWER SUPPLY 220 Volts 50Hz
    FITTINGS Mains ON/OFF switch, Light ON/OFF switch, Blower ON/OFF switch
    ACCESSORIES Magnehelic gauge, UV light, Anti-static PVC Curtains, On-site validation, IQ, OQ, PQ documents
