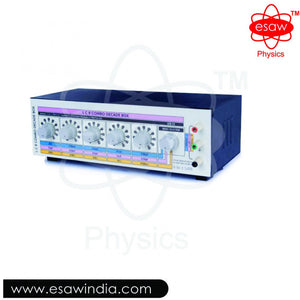

ESAW Decade LCR Boxes (EEC-9727)

FEATURES:

* Compact & Cost Effective Design

* Wide range of precise Inductance, capacitance & Resistance

* Direct readable format

* Output on Safety Sockets

* High accuracy Non-Inductive Resistors

* Bi-Polar Working Capacitance available up to 600Volts

* Reversely printed Membrane Panel

* Resistance Coils, Transparent Plastic Case

* Non-inductively wound with double silk covered constantan coils on plastic shaft enclosed in a transparent plastic tube with a connection terminal at each end. Values clearly marked on each coil. Accuracy +0.2 %, Rated 1W.

APPLICATIONS:

Combined Decade LCR Box (3in 1 COMBO BOX) is a very suitable desktop Instrument ever first time for EC13599/2 1.0 to 109 educational institutes, testing laboratories and electronic research and development organizations for EC13599/3 11 to 500 development of electronic circuits and Instruments. This single instrument can be used as a substitute for thregi©13599/ 4 51 to 1000 different 5 Decades of Inductance Box, 5 Decades of Capacitance Box and 5 Decades of resistance Box.

DESCRIPTION:

This specially designed Decade Lab is a Combination of Decade Inductance, Decade Capacitance & Decade Resistance. This 3 in 1Combo Lab is made very precisely to use as a higher end accurate Device for testing and calibrating of all kind of circuits & Instruments. The Inductances used are made of precision winding on ferrite pot core to get 10 precise Inductance values, with high quality insulated copper wire wound on specially designed bobbins which are directly mounted on PCB get stable permeability and accurate values in shock and vibration. The Capacitors used are having high insulation resistance of Polystyrene film wound non-inductively with minimum tolerance, thereby ensuring high accuracy and stability of working with constant characteristics for several hours together. Non Inductive Resisters of 2 Watts each Metal oxide are used to get precise resistance values at a wide range temperature levels. Specially Designed Rotary wafer Switches with silver plated copper alloy contacts assembled with excellent dielectric material ensuring very low contact Resistance and high insulation. Specially designed quality hardware components for easy user interface and highly professional Testing and instruments are used to calibrate this 3 in 1 Decade Lab.

Inductors on Ferrite Pot core up to 100H 500mA

Voltage selection for Capacitors (100Volt/250Volt/600Volt)

Wattage selection for Resistors (0.5W/1.0W/2.0W/3.0W)

SPECIFICATIONS:

?????????????????????????????????????????????????????????????????????????????????????????? ? Description Type ? Inductor Pot ? Capacitor ? Resistor ? ? ? Core Wound ? Polyester ? Non-Inductive ? ?????????????????????????????????????????????????????????????????????????????????????????? ? Ranges ? 100 mH To 100 H ? 10pF to 111mF ? 0.01 Ohm To 111 MOhm ? ?????????????????????????????????????????????????????????????????????????????????????????? ? Standard Working Voltage ? 200 mA ? 250Volt Non-Polar ? 250Volt/2watt ? ? Current/Power ? ? ? ? ?????????????????????????????????????????????????????????????????????????????????????????? ? Range Selection ? Rotary Switch ? Rotary Switch ? Rotary Switch ? ?????????????????????????????????????????????????????????????????????????????????????????? ? Maximum Decades ? 6 ? 6 ? 6 ? ?????????????????????????????????????????????????????????????????????????????????????????? ? Maximum Residual Decades ? 1 MH ? 12pF ? 12 mOhm ? ?????????????????????????????????????????????????????????????????????????????????????????? ? Dimensions (L X W X H) ? 300X180x120 ? ? ? ?????????????????????????????????????????????????????????????????????????????????????????? ? Weight (Kg) ? 2.400 ? ? ? ??????????????????????????????????????????????????????????????????????????????????????????
