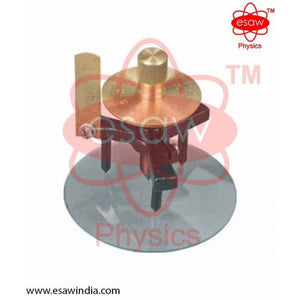

M-804 ESAW Spherometer - Disc Type

It consists of a small metal frame, supported by three legs fixed at the corners of an equilateral triangle. A screw of fine pitch passes through the center of the metal frame. The screw forms the fourth leg. The main scale (or pitch scale) is marked on a metal strip fixed at right angles to the frame. This scale is marked in millimeters with zero marks at the center (10-0-10mm). A circular scale is fixed to the screw head. It carries a circular scale divided into 100 equal parts. (In some cases it is divided into 50 equal parts). The edge of the circular scale is very close to the metal strip and the metal strip is used also as a reference line for taking the circular scale reading. The disc & scales are brass lacquered & the legs are made of steel black painted.
