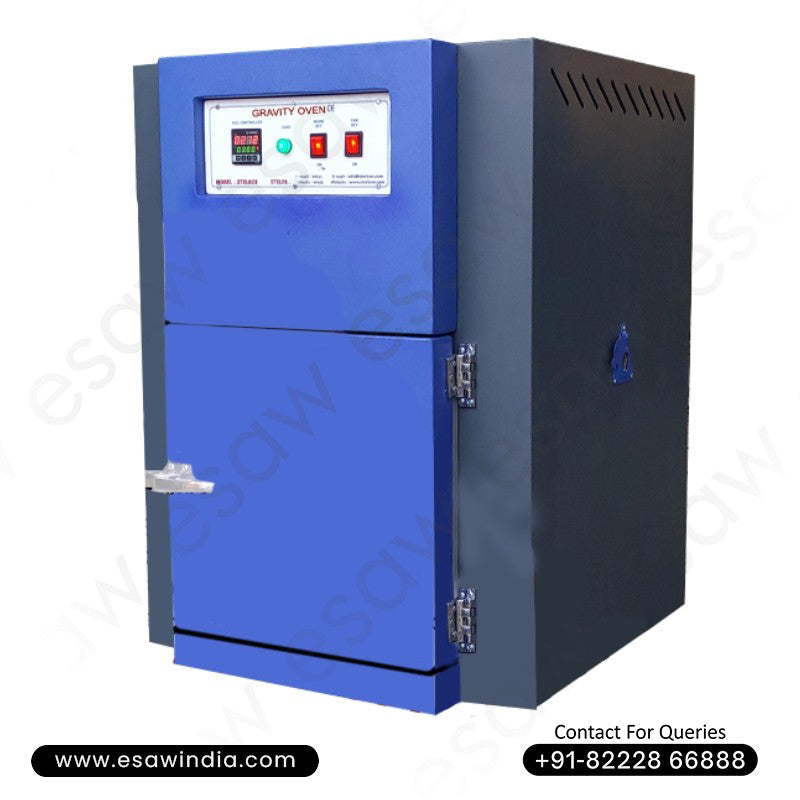

Gravity Convection Ovens

Gravity Convection Ovens

Model No : GCO-65

Shipping calculated at checkout.
Quantity:
Estimated Delivery:
Delivery Period

3-5 Working Days

Replacement

3 Days Replacement as standard, Free of Cost

Dedicated Support

Support from 9:30 AM to 6:00 PM everyday

Quantity:
Description

    Gravity Convection Ovens are ovens that do not have air circulation inside the chamber; in other words, such laboratory ovens are made without fan. A gravity oven is considered ideal for gentle drying and heating of powder samples and materials that are light weight and may disturb by forced air. These ovens offer less temperature uniformity. We are gravity oven manufacturers and suppliers in India. Our laboratory gravity ovens meet all needs of baking, sterilizing, annealing, drying and testing etc. Each model is made with stainless steel inner chamber and outer cabinet is made with MS or GI sheet with corrosion resistance powder coating on it. Digital temperature controller with PT100 temperature sensor controls the temperature and keeps uniform throughout test cycle. These gravity ovens offer three side heating; right and left sides and bottom; therefore, temperature uniformity can be maintained easily without fan. We also have economy models, which are made with aluminum chamber and thermostatic temperature controller; such units are comparatively available at low price.

    Product Information

    TECHNICAL SPECIFICATIONS



    TEMPERATURE RANGE 50°C to 400°C
    TEMPERATURE ACCURACY PID temperature controller
    TEMPERATURE CONTROLLER J Type
    TEMPERATURE SENSOR Sheathed heating element
    HEATING ELEMENT Motor driven blower with V-belt drive
    INNER CHAMBER Double or Triple walled
    EXTERNAL CABINET Stainless steel
    INSULATION Powder coated GI sheet
    SHELVES High grade ceramic wool
    POWER SUPPLY Insulated solid door w/ pull action clamp
    ACCESSORIES All SS304 construction (GMP model), Programmable timer w/ hold
    function, Over temperature safety thermostat, RS232 PC interface
    Thermal printer interface, Data logging with PC interface

    DIMENSIONS

    Model No. Dimension (in mm) Capacity No. of Trays
    GCO-28 305 x 305 x 305 28 Ltrs. 2
    GCO-45 355 x 355 x 355 45 Ltrs. 2
    GCO-95 457 x 457 x 457 95 Ltrs. 2
    GCO-125 457 x 457 x 609 125 Ltrs. 3
    GCO-225 609 x 609 x 609 225 Ltrs. 3
    GCO-340 609 x 609 x 914 340 Ltrs. 4
    GCO-450 609 x 609 x 1219 450 Ltrs. 5
    GCO-760 914 x 914 x 914 760 Ltrs. 4
    GCO-1020 914 x 914 x 1219 1020 Ltrs. 5
