SPECIFICATIONS

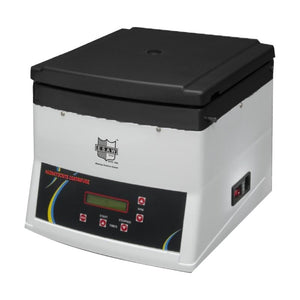

8 Haematocrite Centrifuge Machine, Max. speed 13000 r.p.m.
8 Compact body which is made of plastic injection moulded.
8 Inner safety bowl made of stainless steel
8 Fitted with well balance universal motor having long life with high grade carbons.
8 2 lines of 16 character LCD Display of r.p.m., r.c.f., set and run time.
8 Last test parameter recall and displays automatically on LCD.
8 Microprocessor based Digital timer of range 0-99 min.
8 Preset speed controls thru microprocessor from 2000to13000 r.p.m. in interval of 100 rpm.
Supply completed with following accessories:
8 Micro Hematocrite rotor to accommodate24 capillaries of 75mm x 1mm or 12 capillaries.
8 Rotor covermade ofpolycarbonate.
8 Heparinised capillary tubes 75mm long x 1mm bore(Pack of 100 Nos.)
8 Non-Heparinised capillary tubes 75mm long x 1mm bore (Pack of 100 Nos.)
8 Reading device.
8 Sealing wax - 1 tray
|
4 Dimension of Machine:
|
L = 290mm, W = 270mm, H = 240mm
|
|
4 Weight of Machine:
|
9.5kg. approx.
|
|
4 Dimensionof box:
|
L-355mm x W-355 x H-340mm
|
|
4 Weight of Box
|
11 kg. Approx.
|
Haematocrite Centrifuge (Brushless) (Withoutcarbon) Model:T-15BL
All specifications are same as above but in this model the motor is Brushless (without carbon) but maximum speed 11500 r.p.m.
