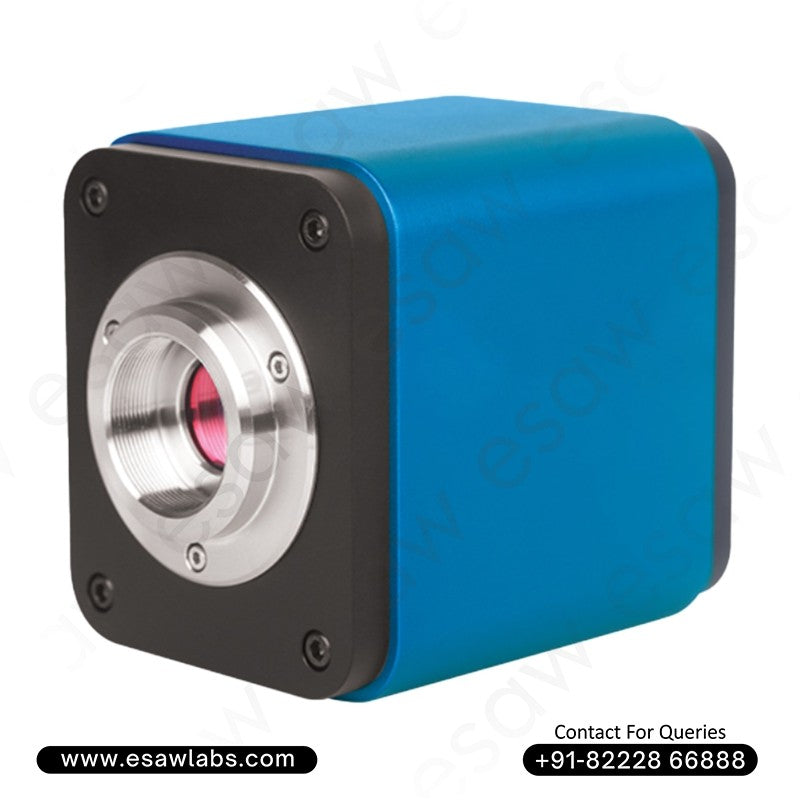

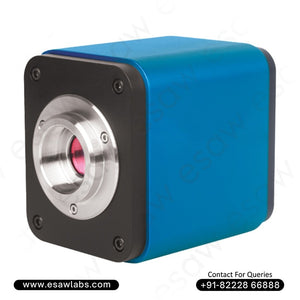

ESAW Scopecam is a multiple interface (HDMI+WIFI+SD card, so SCOPE here means
multiple interfaces) CMOS camera and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+WIFI are used as the data transfer interface to HDMI display or computer.
For HDMI output, The ScopeCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.
For WIFI output, unplug the mouse and plug in the USB WIFI adapter, connect the computer WIFI to the camera, then the video stream can be transfer to computer with the advanced software OPTView. With OPTView, you can control the camera and process the image.
Product Information
| Sensor |
Sony IMX178(C) 1080P/5MP |
| Pixel (m) |
2.4 x 2.4 |
| FPS Resolution |
60@1920x1080 (HDMI) |
| 25@1920x1080 (WiFi) |
| USB Mouse |
Connect USB mouse for easy operation with embedded XCamView software |
| USB2.O |
Connect USB flash drive to save pictures and videos Connect 5G WLAN module to transfer video wirelessly in real time |
|
| SD |
Comply with SD103.O standard and SD card could be inserted for video and images saving |
| HDMI |
Comply with HDM11.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
|
| Other Specifications for HDMI Output |
| UI Operation |
With USB Mouse |
| Image Capture |
JPEG Format with 5M Resolution in SD Card(XCAM1080PHB) |
| Video Record |
ASF Format 1080P 30fps in SD Card |
| Camera Control Panel |
Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control |
| Toolbar |
Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function |
