High Temperature Ovens

High Temperature Ovens

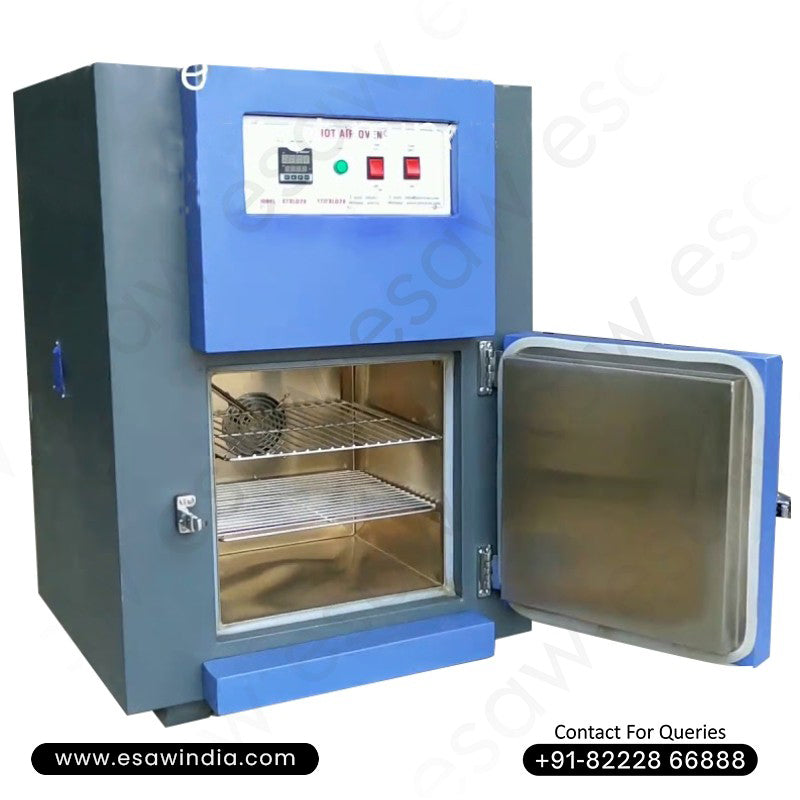

Model No : HTO-75

Shipping calculated at checkout.
Quantity:
Estimated Delivery:
Delivery Period

3-5 Working Days

Replacement

3 Days Replacement as standard, Free of Cost

Dedicated Support

Support from 9:30 AM to 6:00 PM everyday

Quantity:
Description

    High temperature ovens are required by some applications, where high temperature 300°C to 400°C is required. Laboratory research and light industrial applications are some of areas where high temperature ovens play important role. At ESAW, we have understanding, experience and engineering to design user friendly high temperature oven with temperature ranges up to 300°C, 350°C and 400°C etc following class 3.1 DIN12880 standards. These ovens are suitable for drying, pre-heating, curing, core hardening, aging and component testing etc. There are variety of customization options are available with us at competitive price in India.

    Product Information

    TECHNICAL SPECIFICATIONS

    TEMPERATURE RANGE 50°C to 400°C
    TEMPERATURE CONTROLLER PID temperature controller
    THERMOCOUPLE J Type
    HEATER Sheathed heating element
    AIR CIRCULATION Motor driven blower with V-belt drive
    CONSTRUCTION Double or Triple walled
    INNER CHAMBER Stainless steel
    OUTER CABINET Powder coated GI sheet
    INSULATION High grade ceramic wool
    DOOR Insulated solid door w/ pull action clamp
    DOOR GASKET High temperature gasket
    TRAYS Chrome plated steel trays
    EXHAUST Fume exhaust damper
    SAFETY Over temperature safety controller
    POWER SUPPLY 220 Volts 50Hz
    ACCESSORIES External cabinet made of Ss304, GMP model (Inner SS316 & Outer
    Ss304), Timer or profile control, Door safety limit switch, Data
    logging w/ Date, Time & Temperature, Eurotherm temperature
    controller, 7 inch touch screen HMI controller

    DIMENSIONS

    Model No. Dimension (in mm) Capacity No. of Trays
    HTO-28 305 x 305 x 305 28 Ltrs. 2
    HTO-45 355 x 355 x 355 45 Ltrs. 2
    HTO-95 457 x 457 x 457 95 Ltrs. 2
    HTO-125 457 x 457 x 609 125 Ltrs. 3
    HTO-225 609 x 609 x 609 225 Ltrs. 3
    HTO-340 609 x 609 x 914 340 Ltrs. 4
    H TO-450 609 x 609 x 1219 450 Ltrs. 5
    HTO-760 914 x 914 x 914 760 Ltrs. 4
    HTO-1020 914 x 914 x 1219 1020 Ltrs. 5
