Specifications
8 ![]()

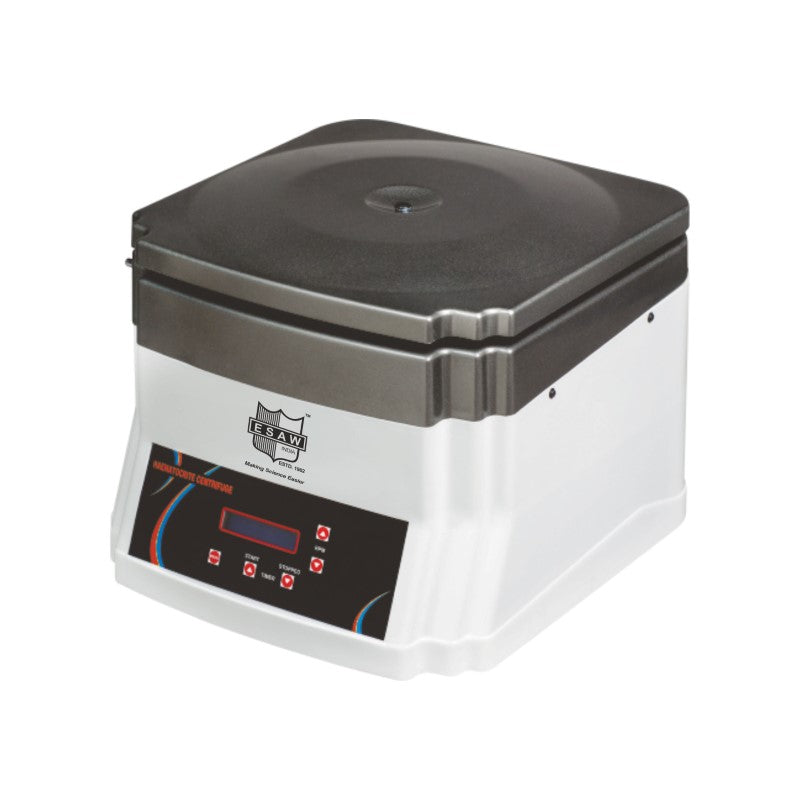

Compact Laboratory Centrifuge Machine, Microprocessor based, digital.
8 Body made of rust proof ABS Plastic injection moulding with metallic protection bowl.
8 Lid lock for safe drive.
8 Equipped with 0-99 minute timer.
8 2 lines of 16 character LCD display of r.p.m., R.c.f, for set and run time.
8 Programmable speed regulator from 500 to 4400 rpm in interval of 100 rpm.
8 Last test parameter recall and displays automatically on LCD
Technical Parameters
|
4 Max. Speed
|
4400r.p.m.
|
|
4 Motor
|
Universal Motor (with carbon brushes) 1/8 H.P.
|
|
4 Power
|
AC 220V 50Hz+10%
|
|
4 Dimension of Machine
|
L=395mm, W=360mm, H=280mm
|
|
4 Dimension of outer box
|
510x510x390mm . .
|
|
4 Net Weight
|
12.5kg. Approx. Gross Weight with box= 14 Kg.
|
|
4 Current
|
220 volts, 50HzA.C.
|
The machine comes with any one rotor head, to be selected by customer from below mentioned table.
|
Type
|
Nos.of holesx Tubevolume
|
|
4Swing out
|
8x15ml
|
|
4Swing out
|
16x vacuutainers
|
|
4Swing out
|
16 x 12x75mm / 12x100mm borosil tubes
|
|
4 Angle
|
12 x 15ml.
|
Standard Accessories & Packing
8 The above mentioned rotor heads are completed with S.S. tube carriers, suitable Glass/PVC centrifugal tubes, head puller, spanner and rubber cushions.
8 Machine is well packed in 5 ply corrugated box.
