Specifications

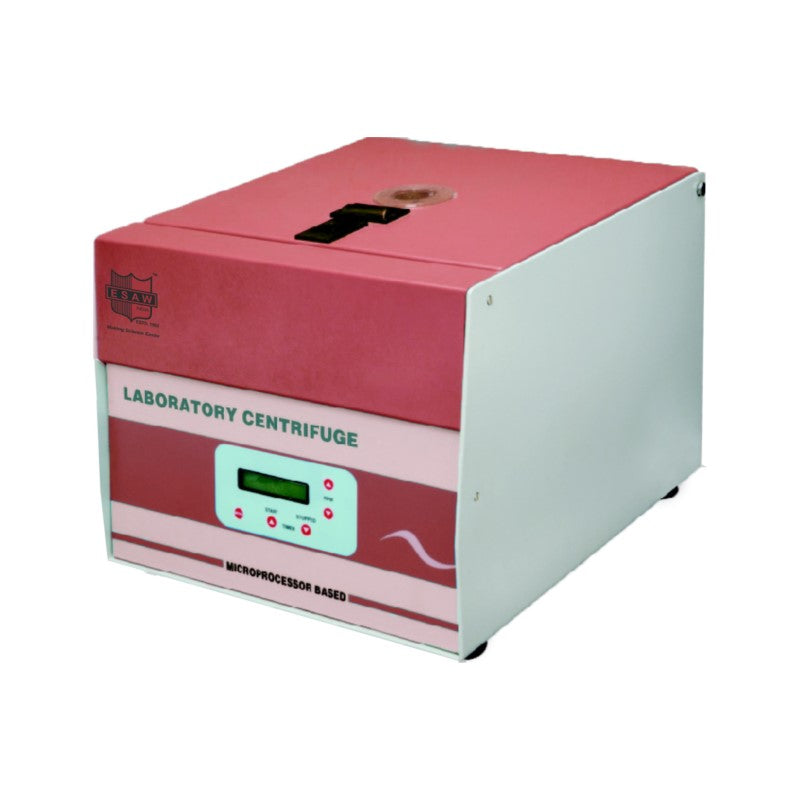

8 Bench Top High Speed Centrifuge Machine
8 Microprocessor based with digital timer 0 -59 minutes.
8 Heavy duty C.R.C. construction finished with powder coating
8 Metalic centrifugal bowl for extra protection and easy cleaning.
8 Fitted with well balanced universal motor (with carbons)
8 2 lines of 16 character LCD display of r.p.m., Set time and run time
8 Programmable Speed controller from 2000 to 10000 in variation of 100 rpm
8 Last test parameter recall and displays automatically on LCD
8 Lid lock for safe drive
Rotors made of Aluminium Alloy to withstand high speed of 10000 rpm
Technical Parameter
|
4 Max. Speed
|
10000 r.p.m.
|
|
4 Motor
|
Universal Motor (With carbon)
|
|
4 Power
|
AC 220V 50 Hz + 10%
|
|
4 Dimensions
|
510 x 510 x 390mm
|
|
4 Weight of Machine
|
21 kg approx.,
|
|
4 Dimension & wt. with Box
|
23.5 kg
|
Machine comes with only one rotor which can be selected from below mentioned table.
|
Rotor Type
|
Rotor Capacity
|
Max. Speed
on Rotor (r.p.m.)
|
|
4 Angle Head
|
12 x 1.5/2ml
|
10000
|
|
4 Angle Head
|
24 x 1.5/2ml
|
10000
|
|
4 Angle Rotor
|
8 x 5 ml
|
10000
|
|
4 Angle Rotor
|
8 x 15 ml
|
10000
|
|
4 Angle Head
|
4 x 25ml
|
10000
|
|
4 Angle Rotor
|
4 x 50 ml
|
10000
|
Note:
This is our general purpose leaflet. We can amend technical features :-:-according to the requirement of customer but with prior concent on our letter head.
