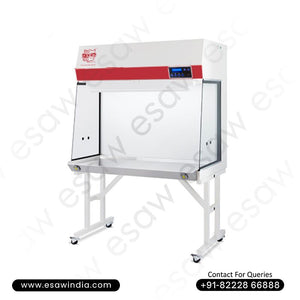

Laminar Air Flow (Horizontal)

Laminar Air Flow (Horizontal)

Model No : laf-02

Shipping calculated at checkout.
Quantity:
Download Pdf
Estimated Delivery:
Collections:Cleanroom Equipments, Laboratory Equipments, Laminar Air Flow
Get It Today

Free shipping

Free shipping on orders over $75.

100 - Day Returns

Not impressed? Get a refund. You have 100 days to break our hearts.

Dedicated Support

Support from 8:30 AM to 10:00 PM everyday

Laminar Air Flow (Horizontal)

Laminar Air Flow (Horizontal)

Quantity:
Description
Description
Description
  • Description

    ESAW laminar air flow cabinet is clean Bench designed to prevent contamination of semiconductor wafers, biological samples, or any particles sensitive device. The cabinet is made of Mild steel stainless. These Laminar air flow units are used for applications such as tissue culture, media preparation, sterile handlings, PCR sample preparation and many more.

    • Large front panel display and user friendly control panel
    • 10° slanted view screen provides highly visible and easily accessible area
    • Work area is surrounded by negative pressure , double-wall plenums for superior protection
    • Sturdy construction of cabinet protects from air leakage from the working zone
    • Display of Life of UV lamp, HEPA filter and temperature
    • Caster wheels for ease of mobility
    • Levelling jack for vibration free operation

    Product Information

    TECHNICAL SPECIFICATIONS FOR HORIZONTAL LAMINAR AIR FLOW

    Cat. No.

    LLF-2H

    LLF-3H

    LLF-4H

    LLF-5H

    LLF-6H

    Working Area (mm)

    600×600×600

    900×600×600

    1200×600×600

    1500x600x600

    1800×600×600

    Air Flow

    Horizontal

    Working Table

    Stainless steel 304, 16 SWG

    Control system

    PLC / Manual

    Display

    Colour HMI with touch screen / Deferential Pressure Gauge

    Size of HEPA filter (mm)

    600×600×76

    900×600×76

    1200×600×76

    1500 x600x76

    1800×600×76

    Pre filters

    1

    Filter efficiency

    99.9 %

    Air Cleanliness



                                                             Class 100

    Particle Retention

    0.3 micron

    Velocity

    90 FPM + 20 %

    Illumination

    LED, 750 - 800 LUX

    Voltage

    110 V/230 V AC

    Power

    500 W

    500 W

    1000 W

    1000 W

    1000 W

    External Size

    730x800x1200

    1040x800x1200

    1345x800x1200

    1650x800x1200

    1960x800x1200

    External Size with stand

    730x800x1900

    1040x800x1900

    1345x800x1900

    1650x800x1900

    1960x800x1900

    Size with packing

    860x927x1650

    1170x927x1650

    1480x927x1650

    1780x927x1650

    2090x927x1650

    Net weight

    110

    125

    150

    160

    190

    Gross weight

    145

    175

    185

    185

    225
