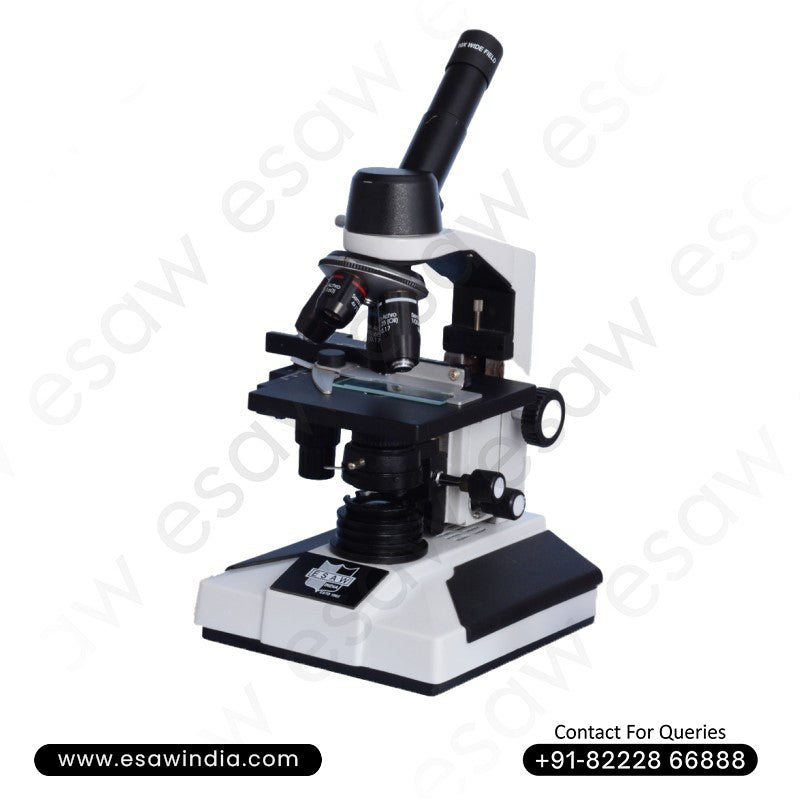

Monocular Microscope for clear and detailed specimen viewing in educational and laboratory settings

Monocular Microscope

Model No : IM-01

Regular price Rs. 7,499.00
Shipping calculated at checkout.
Quantity:
Download Pdf
Estimated Delivery:
Collections:Compound Microscopes, ESAW Educational Microscopes, Microscopes
Delivery Period

3-5 Working Days

Replacement

3 Days Replacement as standard, Free of Cost

Dedicated Support

Support from 9:30 AM to 6:00 PM everyday

Monocular Microscope for clear and detailed specimen viewing in educational and laboratory settings

Monocular Microscope

Regular price Rs. 7,499.00
Quantity:
Description
Description
Description
  • Description

    These IM-01 Microscope is used for academics students to perform or anaylze and research. These helped many students to know about the microbiological and cultural cells and other vitals processes. The sldies on the mechanical stage is used to observe the cells , other microtiny things that users can foundout and Take a step towards their sucess. The microscope is about 4kg Medium weight of the microscope. The diaphagram that is rotatable through these users can change the settings as per there requirements.



     Technical specifications

    Main body

    Esaw ergonomically designed, aluminium dia casted sturdy body

    Viewing

    360° rotatable & 45° inclined monocular head having hard coated prism.

    Objective

    Anti-fungal & anti reflection coated 4x, 10x 40x & 100x oil immersion semi-plan achro din objective, fully brass made with great design.

    Focusing

    Separate coarse & highly sensitive graduated fine focussing knobs.

    Light source

    High quality led illumination & smps based 100v-220v wide voltage range.

    Eye-pieces

    Anti-fungal & anti -reflection coated 10x wide-field & 15x wide-field eye-pieces with positive stop clicks.

    Stage

    Graduated rectangular brass made mechanical stage with co-axial movement.

    Nosepiece

    Outward quadruple brass made nosepiece.

    Magnification setting

    8 magnification setting: 40x, 60x, 100x, 150x, 400x, 600x, 1000x & 1500x

    Condenser

    Aluminium made abbe 1.25 na type condenser with copper iris diaphragm & swing in-swing out filter holder.

    Packing & accessories

    In box content-main body, monocular viewing head, 4 objectives, 2 eye-pieces, dust cover, cleaning cloth, immersion oil, power cable with 50 blank slides & cover -slips. Packed in styrofoam box & card board box with instruction manual..
