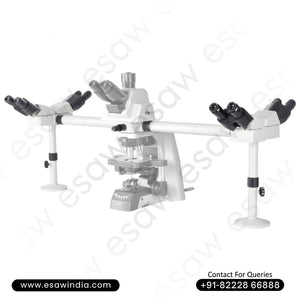

MX-900 Life Science Microscope

MX-900 Life Science Microscope

Model No : MX-900

Regular price Rs. 790,999.00
Shipping calculated at checkout.
Quantity:
Download Pdf
Estimated Delivery:
Collections:Life Science Microscopes, Microscopes, Research Microscopes
Get It Today

Free shipping

Free shipping on orders over $75.

100 - Day Returns

Not impressed? Get a refund. You have 100 days to break our hearts.

Dedicated Support

Support from 8:30 AM to 10:00 PM everyday

MX-900 Life Science Microscope

MX-900 Life Science Microscope

Regular price Rs. 790,999.00
Quantity:
Description
Description
Description
  • Description
    • The infinity-corrected optical system reduces distortion and improves color accuracy.
    • Plan-achromatic lenses produce high-contrast images with edge-to-edge sharpness.
    • The Koehler illumination system provides centered, evenly-distributed lighting with a field aperture for maximum contrast and definition.
    • Rackless mechanical stage provides extremely smooth movement over a wide range.

    Product Information

    TECHNICAL SPECIFICATIONS
    FRAME Frame: Ergonomic design microscope with modular frame, on-site
    upgradable to Fluorescence, phase contras and darkfield microscopy. 6
    position nosepiece to accommodate 6 objectives at a time
    OPTICAL SYSTEM Frame: Ergonomic design microscope with modular frame, on-site
    upgradable to Fluorescence, phase contras and darkfield microscopy. 6
    position nosepiece to accommodate 6 objectives at a time
    ILLUMINATION The microscope should have an ergonomic stand with
    12V/100W halogen light source or equivalent LED transmitted light
    source. Should have Light intensity manager switch with front knob
    for light intensity adjustment and built-in filters.
    OBSERVATION Should be Tilting trinocular wide field, with
    inclination from 5 degree to 30 degree three way light path distribution
    (100:0, 50:50 & 0:100) for simultaneous viewing and imaging of the
    specimens, provided with paired widefield eyepieces-FN 22 or more.
    EYE-PIECES Should be of at least IOX magnification, with diopter
    adjustment facility with field of view of 22 mm or higher.
    NOSEPIECE Reversed sextuple position revolving nosepiece to accommodate six
    objectives at a time with a slot for Analyser and Polarizer.
    OBJECTIVES Plan achromat objective 2X- 2.5X
    Plan achromat objective 4X
    Plan Apochromat objective I OX
    Plan Apochromat objective 20X
    Plan Apochromat objective 40X
    Plan Achromat Oil objective I OOX Oil
    STAGE X and Y rectangular mechanical stage motion control on right
    hand side with capacity to hold two slide glasses at a time. The stage
    should be ceramic coated and rotatable.
    REVOLVING NOSEPIECE Revolving nosepiece to accommodate 6 objectives at a time with a slot
    for analyser and polarizer. Separate slot for tint plate, for urate crystals
    and CPPD crystals should be present. Tint plate should also be
    provided.
    CONDENSER swing out. Condenser should be compatible with 2X-1 OOX
    and also compatible with achromat and apochromat objectives
    MULTI-HEAD ATTACHMENT 5 additional ergonomic viewing heads apart
    from the primary user. In all viewing end illumination should be as
    strong as in the master objectives. Both eye pieces should have diopter
    adjustments for all secondary observers and should have FOV 22mm
    and above. When using the same type of observation tube, orientations
    of images observed by all observers should be identical.
    LED ARROW POINTER Multicolor (minimum 2), intensity controllable
    LED Colored indicator should be supplied with the microscopes.
    Arrow control Joystick, arrow rotation dial and color selection dials
    should be provided.
