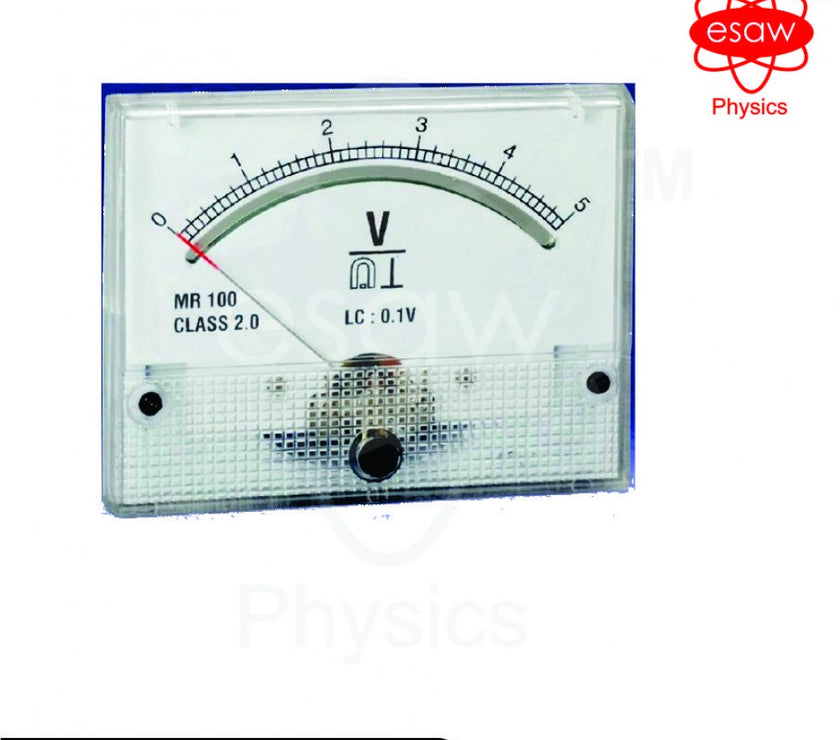

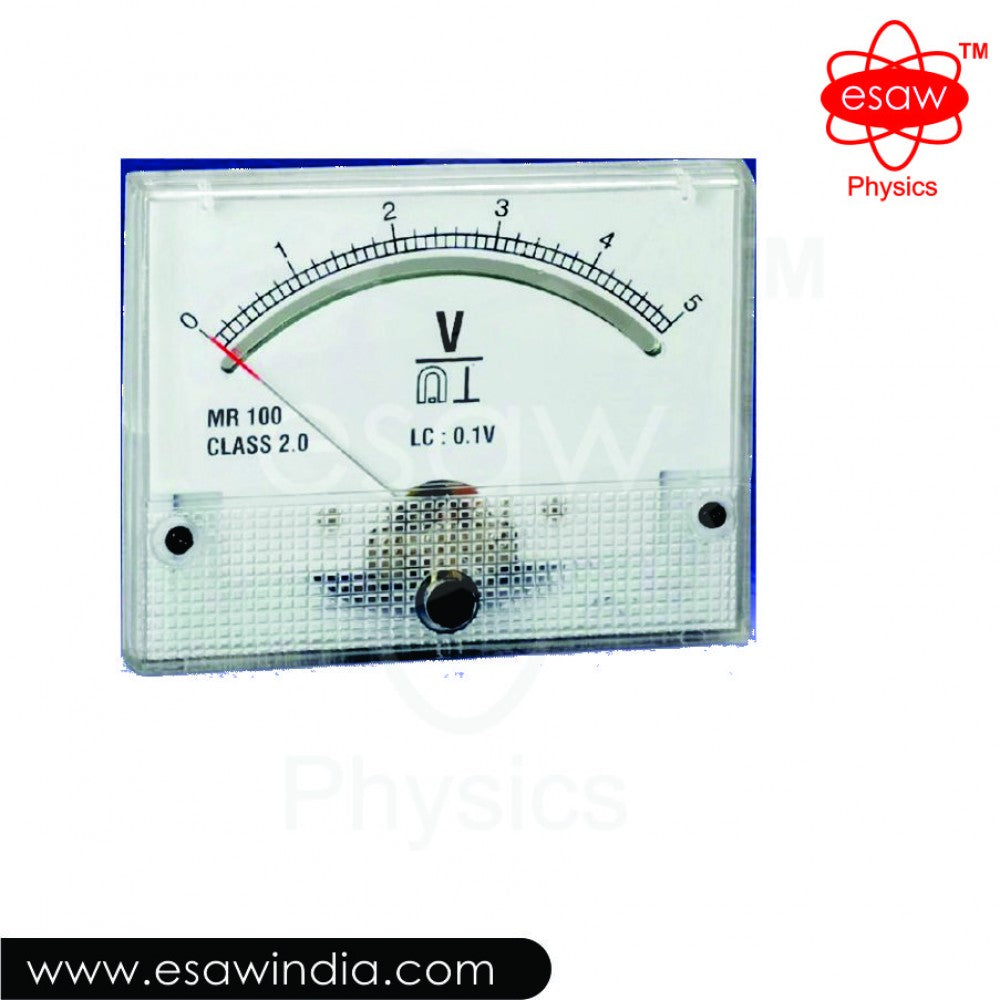

Rectangular Panel Meter Without Stand (ME-7838)

Special Features:

• Housed in ABS non-breakable case with clear transparent high impact acrylic front cover.(Stand not include

• Fitted at front with zero adjuster.

• Knife edge pointer with anti parallax mirror for accurate readings.

• The slanting front of meter inclines the scale of 45 permitting it to bread with equal ease from eye level also

Technical Data :

• Scale Length : 95 x 65mm

• Accuracy : Class Index 1.5%

• Acrylic Meters may be subjected to wide variations in temperature or remain in the circuit continuously without seriously affecting the accuracy.

• All acrylic meters are manufactured and calibrated in a modern air-conditioned and state-of-the-art plant which has been designed and built specially for this work. These meters are guaranteed to perform satisfactorily. All our MR-100 meters are provided with anti-parallax mirror but without desk stand.

???????????????????????????????????????????????????????????????? ? ? Type ? Common Ranges ? ???????????????????????????????????????????????????????????????? ? a ? D.C. Ammeter ? 1, 1.5,2.5,3.5 Amps. ? ???????????????????????????????????????????????????????????????? ? b ? D.C. Ammeter ? 10,15 Amps. ? ???????????????????????????????????????????????????????????????? ? c ? D.C. Ammeter ? 20, 25, 30 Amps ? ???????????????????????????????????????????????????????????????? ? d ? D.C. Milliammeter ? 1,5,10,50,100,250,500 or 750 mA ? ???????????????????????????????????????????????????????????????? ? e ? D.C. Microammeter ? i) 0-250 or 0-30 pA ? ? ? ? ? ? ? ? ii) 0-50pA ? ? ? ? ? ? ? ? iii) 0-100pA ? ? ? ? ? ? ? ? iv) 0-250, 300pA ? ? ? ? ? ? ? ? v) 500pA, 1000pA ? ???????????????????????????????????????????????????????????????? ? f ? D.C. Voltmeter ? 3,5,10,25,50,100, 250 or 300 Volts ? ???????????????????????????????????????????????????????????????? ? ? D.C. Millivoltmeter ? 0-25, 50, 100, 250, 500 or 750mV ? ????????????????????????????????????????????????????????????????
