Microprocessor Based

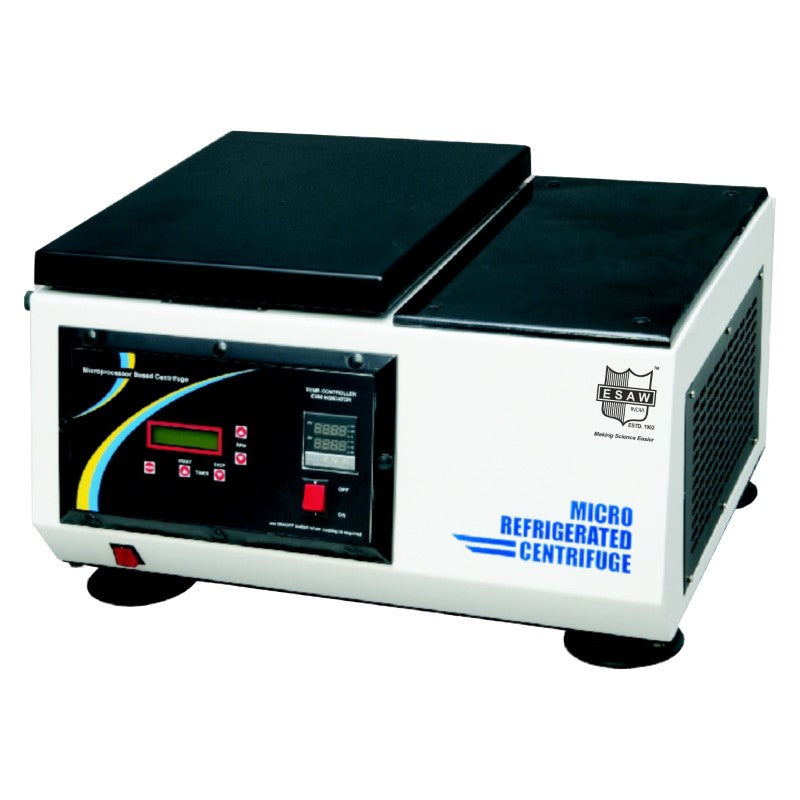

8 Bench Top Universal Refrigerated Centrifuge Machine.
8 Heavy duty C.R.C. construction finished with powder coating.
8 Stainless Steel centrifugal bowl for extra protection and easy cleaning.
8 Fitted with well balanced universal motor with having carbon brushes.
8 2 lines, 20 characters. LCD Display for set time, run time, set and run rpm, rcf.
8 Digital Timer 0-59 minutes.
8 Digital Speed Indicator and R.C.F. Indicator.
8 Programmable Speed Regulator from 2000 to 16000 rpm in Variation of 100 rpm.
8 Safety lid lock.
8 P.I.D. Electronic digital temperature controller cum indicator is fitted to control the centrifuge
temp. from room temp. upto -20°C means shuts off the cooling compressor within accuracy of + 1°C in stand by mode. Means only centrifuge bowl is cooling and centrifuge bowl is centrifuge motor.
Temp. Accuracy when motor is also running is + 2°C
Technical Parameter
|
4 Max. Speed
|
16000 r.p.m.
|
|
4 Max. RCF
|
23000xg
|
|
4 Timer
|
0-59 min.
|
|
4 Motor
|
Universal Motor (with carbon brushes)
|
|
4 Temp. Range
|
from room temperature- to Minus 8°C
|
|
4 Power
|
AC 220V 50 Hz 20A
|
|
4 Weight
|
60 kg. approx.
|
|
4 Dimension
|
L-27” x W-21” x H-15” approx.
|
Machine comes without rotor heads.
Optional rotors can be selected as per customer’s requirements are as under :
|
Rotor Type
|
Rotor Capacity
|
on Speed
Rotor (r.p.m.)
|
RCF x g
|
|
4 Angle Rotor
|
12 x 1.5/2.2 ml.
|
16000
|
17120
|
|
4 Angle Rotor
|
24 x 1.5/2.2 ml.
|
13000
|
13910
|
|
4 Angle Rotor
|
8 x 15 ml.
|
7000
|
7490
|
|
4 Angle Rotor
|
4 x 50 ml.
|
7000
|
7490
|
Note:
i) The speed of the machine depends upon the type of rotor being used. If rotor is heavy the speed will reduce as per above mentioned table.
ii)
This is our general purpose leaflet. We can amend technical features according to the requirement of customer but with our prior concent on our letter head.
