SPECIFICATIONS

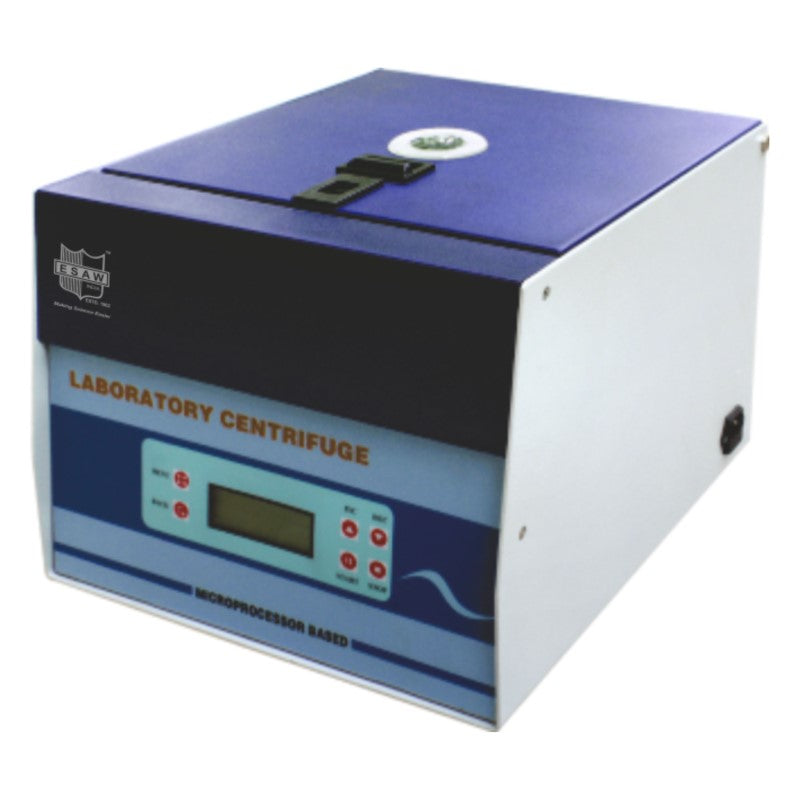

8 General Purpose Laboratory Centrifuge Machine.
8 Heavy duty C.R.C. construction finished with power coating.
8 Double walled ABS injection moulded lid which is light weight to avoid accident.
8 Inter lid lock and metallic centrifuge bowl for safety.
8 4 lines of, 20 character. LCD display for set time and run time, set and run rpm, rcf.
8 Microprocessor based programmable speed control from 500 to 5200 r.p.m depending upon the type of rotor and Digital timmer (0-59 minutes)
8 Last test parameter recall and display automatically on LCD.
8 50 programmes can be stored in memory and automatic rotor identification on display
8 Additional electronic lid lock which does not allow to open. Calibration window on lid.
8 Dynamic break (automatic) and imbalance detector are provided. Selection of 3 acceleration +4 deceleration profile with fast spin option.
|
4 Max. Speed
|
5250 r.p.m.
|
|
4 Max. RCF 'g'
|
3600
|
|
4 Max. capacity
|
400 ml.
|
|
4 Motor
|
Universal Motor 1/8 H.P. (fitted with carbon brushes)
|
|
4 Power
|
AC 220V 50 Hz ±10%
|
|
4 Dimension of Machine:
|
L = 415mm, W = 360mm, H = 305mm
|
|
4 Dimension of outer box.
|
510 x 510 x 390 mm
|
|
4 Nett Weight
|
21kg. Approx. Gross Weight with box = 23.5Kg.
|
Price of machines are without Rotor Head which can be selected by customer as per their specific requirement from variety of rotors as under at extra cost :
|
Rotor type
|
Rotor Capacity
|
Speed R.P.M.
|
Max. R. C.F ‘g’
|
Head type
|
Rotor Capacity
|
Speed R.P.M.
|
Max. R. C.F ’g’
|
|
4 Swing Out
|
16x15ml.
|
4000
|
2750
|
4 Angle Heads
|
6x50ml.
|
5250
|
3600
|
|
4 Swing Out
|
12x15ml.
|
4400
|
2750
|
4 Angle Heads
|
4x50ml.
|
5250
|
3600
|
|
4 Swing Out
|
8x15ml.
|
5200
|
3000
|
4 Angle Heads
|
4x100ml.
|
4000
|
2850
|
|
4 Swing Out
|
6x50ml.
|
4000
|
2850
|
4 Angle Heads
|
24x15ml.
|
4000
|
2850
|
|
4 Swing Out
|
4x50ml.
|
4400
|
2750
|
4 Angle Heads
|
24 Vacuutainers.
|
4000
|
2850
|
|
4 Angle Heads
|
16x15ml.
|
5250
|
3600
|
4 Angle Heads
|
32 tube of 12x75 mm
|
4000
|
2850
|
|
4 Angle Heads
|
12x15ml.
|
5250
|
3600
|
4 Angle Heads
|
12x100 mm of Borosil for serum separation
|
4000
|
2850
|
|
4 Angle Heads
|
8x15ml.
|
5250
|
3600
|
The above mentioned rotor heads are completed with S.S. tube carriers, suitable Glass/PVC centrifuge tubes, head puller, spanner and rubber cushions.
NOTE:
I) The speed of the machine depends upon the type of rotor being used. If rotor is heavy the speed will reduce as per above mentioned table.
Ii) This is our general purpose leaflet. We can amend technical features according to the requirement of customer but with our prior concent on our letter head.
