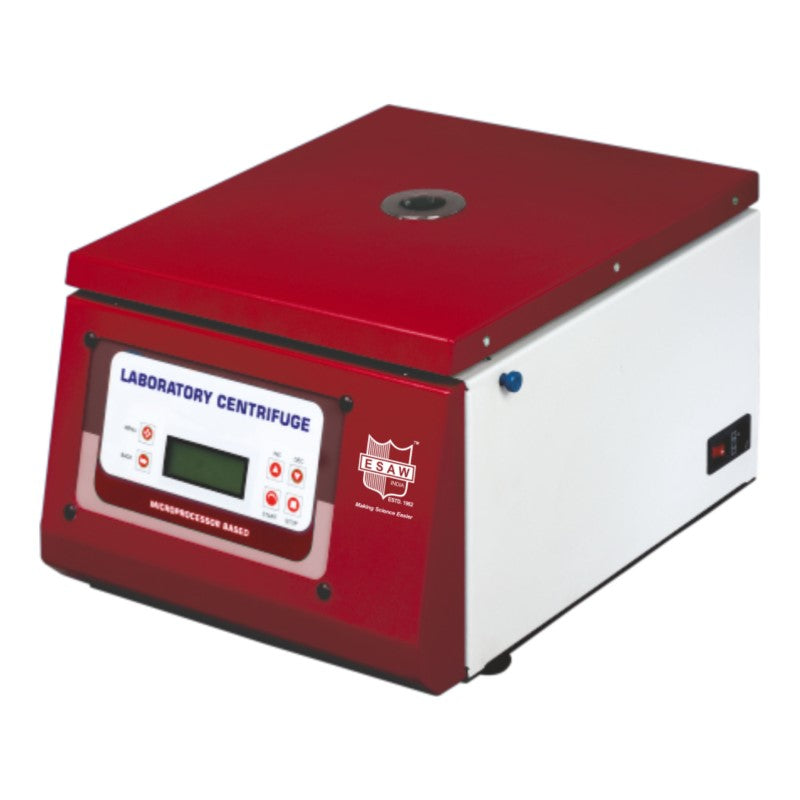

General Purpose Laboratory Centrifuge Machine without Carbon
8 Heavy duty C.R.C. construction finished with power coating
8 Fitted with brushless automatic balanced motor
8 Microprocessor based, 4 lines, 20 characters. LCD Display of set time, run time, set and run rpm, rcf.
8 Equipped with 0-99 minute timer.
8 Programmable speed regulator to control speed from 500 to 6000 r.p.m depending upon the type of rotor & Fast spin option
8 50 programmes can be stored in memory.
8 Automatic rotor identification on display.
8 Additional electronic lid lock which does not allow to open lid when machine is running.
8 Dynamic brake (automatic) and imbalance detector are provided.
8 Selection of 3 acceleration +4 deceleration profile.
Technical Parameter
4Max. Speed
|
6000r/min
|
4Max.RCF
|
4390xg
|
4Motor
|
Brushless Motor
|
4Noise
|
<_ 65dB
|
4Power
|
AC 220V 50 Hz 15A
|
Dimension
|
L x W x H
490 x 380 x 270 mm
|
Weigh
|
29 kg
|
Machine comes without rotor because individual customer require rotor as per his specific requirement hence price of rotors is quoted separately ( At extra cost)
Rotor Type
|
Rotor Capacity
|
Speed
on Rotor (r.p.m.)
|
R.C.F. on
Rotor
|
4Angle heads
|
24 x15 ml.
|
4000
|
2760xg
|
4Angle heads
|
24 Vacuutainers
|
6000
|
4140xg
|
4Angle heads
|
32 tubes of 12x75mm
|
6000
|
4140xg
|
4Angle heads
|
32 tube of 12x100
|
6000
|
4140xg
|
4Angle Bucket Rotor
|
4x100 ml.
|
5000
|
3450xg
|
4Angle Bucket Rotor
|
4x50 ml.
|
6000
|
4350xg
|
4Swing out Rotor
|
16x15ml.
|
5200
|
3588xg
|
4Swing out Rotor
|
12x15ml.
|
5200
|
3
|
Note:
The speed of the machine depends upon the type of rotor being used. If rotor heavy the speed will reduce as per above mentioned
This is our general purpose leaflet. We can amend technical features according to the requirement of customer we being actual manufacturer but with our prior consent on letter head.
