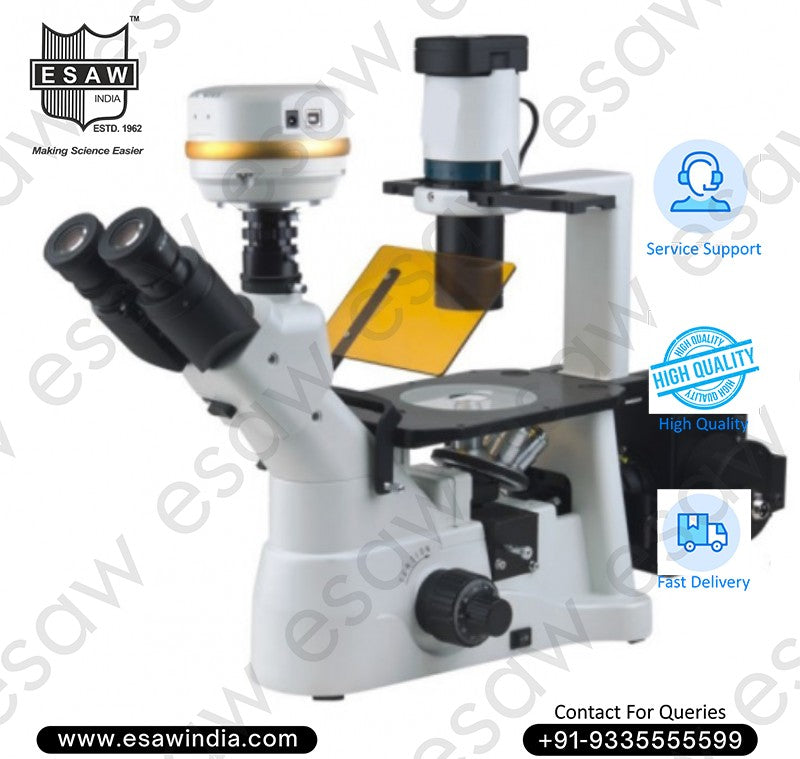

XD Binocular EPI Fluorescence Microscope

XD Binocular EPI Fluorescence Microscope

Model No : XD-BM FL

Regular price Rs. 999,999.00
Shipping calculated at checkout.
Quantity:
Download Pdf
Estimated Delivery:
Collections:Compound Microscopes, Fluorescence Microscopes, Microscopes
Delivery Period

3-5 Working Days

Replacement

3 Days Replacement as standard, Free of Cost

Dedicated Support

Support from 9:30 AM to 6:00 PM everyday

XD Binocular EPI Fluorescence Microscope

XD Binocular EPI Fluorescence Microscope

Regular price Rs. 999,999.00
Quantity:
Description
Description
Description
  • Description
    1. New generation of infinity color corrected optical systems and professional plan semi-apochromatic fluorescence objectives, present you sharp and br- ight fluorescence image.
    2. Professional fluorescence filter system, imported optical material and broa- dband multilayer coating, high transmissivity, mould proof, heat insulation a- nd safety protection system, OSRAM brand mercury lam digital power-supply control.
    3. Swallow tail slide switch easy to change filter cubes, three paths for fluores- cence and one for bright field, four filter cubes can be mounted.
    4. Scientific research class cold CCD, high resolution, fast transmission. Intell- igence Chinese fluorescence image processing software, meets any requ- est of the most professional picture processing.
    5. 6V/30W transmission illuminator, various performances, bright-field, dark-fi- led, phase contrast, polarization observations.

    Product Information

    Optical system  Infinity color corrected optical system
    Eyepiece  PL10X /22,PL15X16 High eye -point wide field plan eyepiece
    Objective  Long working distance infinity plan achromatic /phase contrast /fluorescent objective ;long working
    Viewing head  45°inclined gemel binocular /trinocular viewing head (erect image ),splitting ratio for binocular tr
    Nosepiece  Revolving quintuple nosepiece
    Stage &related  Fixed stage ,size :250X160mm;movable rule ,travel range :120x78mm;extension plate ;slides holder ;
    accessories  Terasaki holder ;glass plate ;metal plate (kidney slot );$35mmPetri dish holder .
    Body  Coaxial focus system with tension adjustment ;coarse adjustment range :9mm,fine adjustment precision, XDRFA reflected illuminator (Koehler illumination ),with iris field diaphragm (centering adjustable U -LH100HG mercury lamp house ,filament center and focal distance adjustable .With mirror ,mirror center and focal distance adjustable .
    Reflected fluorescence  U1 -RFLT100 digital power control box ,wide voltage range 90-245VAC
    illumination  Imported OSRAM 100WDC mercury bulb
    system  Centered objective for mercury bulb Band -pass fluorescent filter (integrated ):B /G /V /UV 30ND25attenuation plate Critical illumination with iris aperture diaphragm ;6V30Whalogen bulb ,pre -centered ,intensity adjust
    Transmitted illumination system  Koehler illumination with iris aperture and field diaphragm ,6V30Whalogen bulb ,pre -centered ,intenLBD color temperature change filter /IF550 green interference filter $30mmcentering telescope
    Accessories  XDSL center -adjustable phase contrast plug -board for 10X-40XXDSL1 center -adjustable phase contras
    Camera adapter  1X&1/2X&1/3XC -mount ;Photo tube 3.2Xphoto eyepiece (with PK mount );Relay lens with C -mount
