Haemoglobinometer (Sahli’s)                             Model: HB-10

       Esaw offer the Homoglobinemeter square tube type

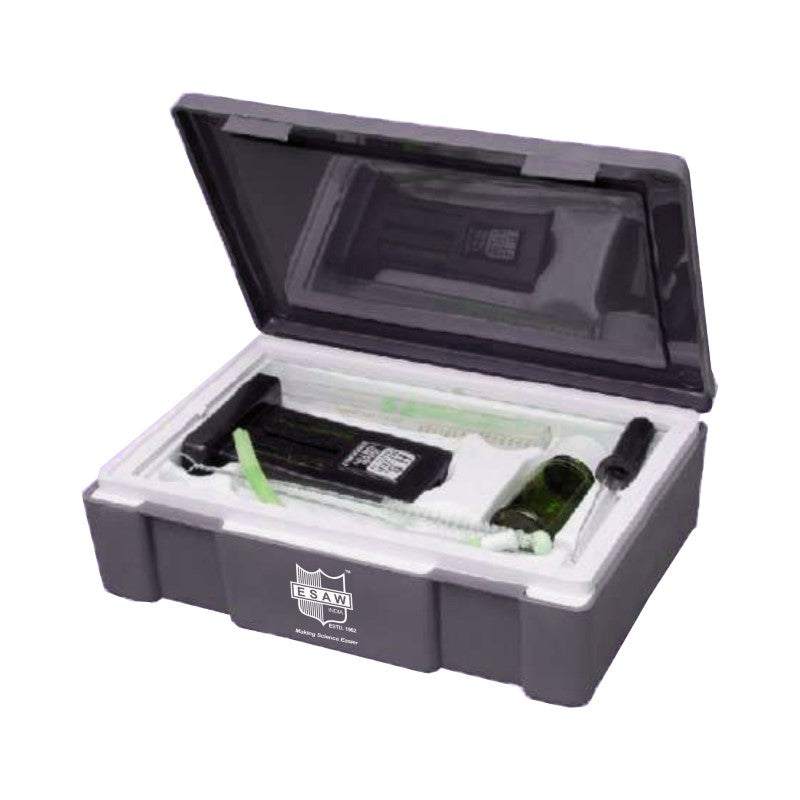

The kit consist of following standard setup:

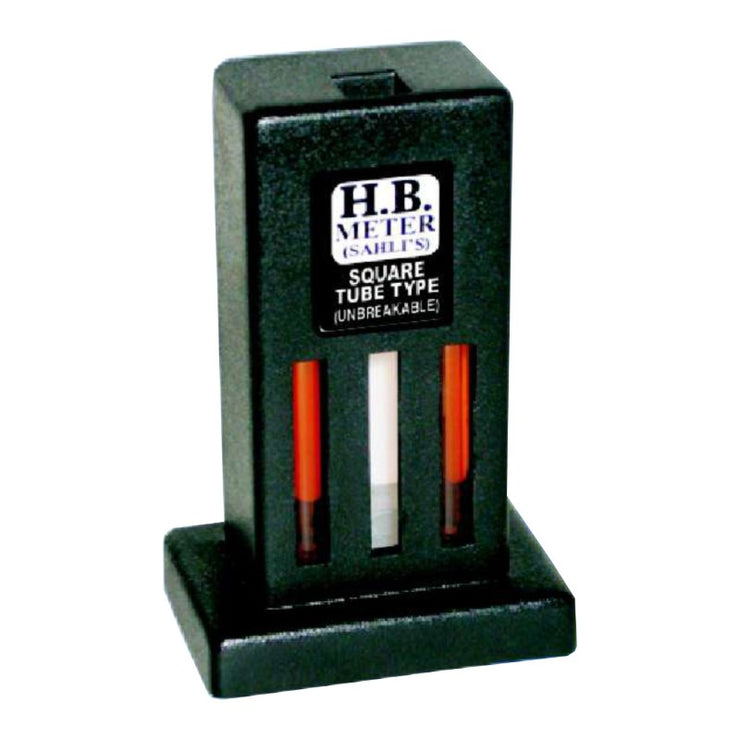

8   Comparator Holder:

It is black in colour. The back of the holder is fitted with milky colour screen made of acrylic. In front of the holder there are three window. The two side window are fitted with colour standard strips and middle window is meant for the square tube for colour comparison. The size of all the three windows are Heigh 3 cms. (Minimum) Width 0.5 cms. (Minimum)

8   Square H.B. Tube:

8   Square H.B. Tube is graduated on both the side for

8   the measurement of haemoglobin in respect of

8   percentage and gram.

8   H.B. Piptte

8   20 microlitre H.B. Pipette with latex tube and mouth piece.

8   Amber coloured glass bottle

8   Glass Stirrer

8   Dropper with teat

8   Cleaning Brush

8   Spare latex tubing one meter

8   All the above are fitted in thermoform tray. Further packed in plastic box.

Note:

8   H.B. Tube is graduated and is calibrated with 2 colour standards fitted to colour comparator.

8   The inner dimensions of Glass Tube vary from tube to tube where as our tube is made of polycarbonate and moulded thru DIE. Hence in all the lot, the inner dimensions of tube is same.

8   So, if HB tube made of Glass is Broken, the whole HB meter is spoiled where as our H.B. Tube is unbreakable and is made of Polycarbonate with long life.

8   Further 2 nos are supplied wit each H.B. meter.
