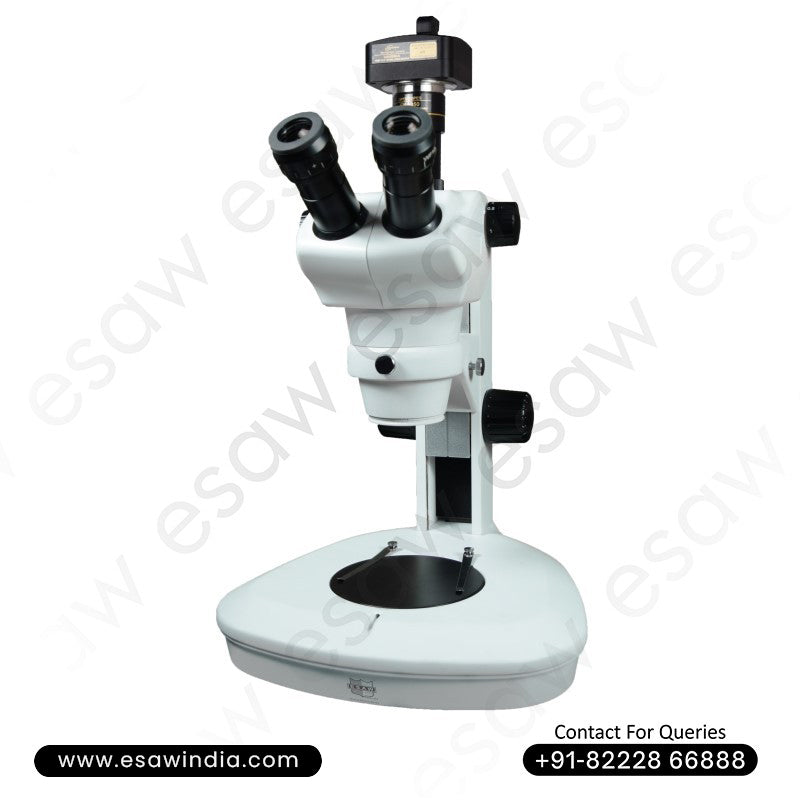

Prime Digital Microscope
Model No : PD-01
Regular price
Rs. 190,999.00
Shipping calculated at checkout.
Share Products
Estimated Delivery:
Delivery Period
3-5 Working Days
Replacement
3 Days Replacement as standard, Free of Cost
Dedicated Support
Support from 9:30 AM to 6:00 PM everyday
Prime Digital Microscope
Regular price
Rs. 190,999.00
Description
Description
- Description
- 20mm Wide Field Eyepieces
- Swinging Adjustment of View
- Ring Illumination Light
- Auxiliary Lens
- Trinocular with Camera Option
- LED Incident and Transmittal Light (Standard)
- Integrated Control for LED Light
- Black/White Plate
Key Features:
Product Information
| OPTICAL SYSTEM | GREENOUGH Stereoscopic |
| OBSERVATION HEAD | BINOCULAR Observation head tiltable between 45°,rotatable at 360°.Interpupillary distance from 55mmto 75mm. |
| EYEPIECE | Wide field 10X(paired )F.O.V. 20mm.Withdiopter and eye guard |
| ZOOM RATIO | 1:6.3 |
| ZOOM OBJECTIVE | 0.8x-5x |
| MAGNIFICATION RANGE | 7xto 45xcontinuous with 10xeyepiece |
| WORKING DISTANCE | 115mm. |
| MECHANICAL BODY | Lateral zoom control movement .Incident 3WLED lamp .Track stand with fan type base .Clip for holding Specimen |
| ILLUMINATION SYSTEM | 3.3Watt -30°Incident transmitted light systems with LED lamps .Both lights regulated with power supply and has separate brightness controls .Homogeneous daylight (6500°)Universal 100V-240V,50/60Hzintegrated power supply with voltage flux stabilizer |
| PACKING &ACCESSORIES | Carrying Case :Styrofoam Packing &Outer corrugated box .Supplied with :User manual ,Vinyl Dust cover |
| Eyepiece | |||||||
| Auxiliary Objective | Working Distance (mm ) | 10X | 15X | 20X | |||
| Magnification | Field of View | Magnification | Field of View | Magnification | Field of View | ||
| Standard | 115 | 8-50X | ?27.5 -?4.4 | 12-75X | ?20 -?3.2 | 16-100X | ?16.6 -?2.5 |
| 0.5X | 211 | 4-25x | ?55 -?8.8 | 6-37.5X | ?40 -?6.4 | 8-50X | ?13.2 -?5.0 |
| 2X | 43.5 | 16-100x | ?13.8 -?2.2 | 24-150X | ?10 -?1.6 | 32-200X | ?7.8 -?1.3 |
| Sensor | Sony IMX178(C) 1080P/5MP | Sony IMX178(C) 1080P/8MP |
| Pixel (m) | 2.4 x 2.4 | 2.4 x 2.4 |
| FPS Resolution | 6001920x1080 (HDMI) | 60@1920x1080 (HDMI) |
| 2501920x1080 (WiFi) | 25@1920x1080 (WiFi) | |
| USB Mouse | Connect USB mouse for easy operation with embedded XCamView software | Connect USB mouse for easy operation with embedded XCamView software |
| USB2.O | Connect USB flash drive to save pictures and videos Connect 5C WLAN module to transfer video wirelessly in real time | Connect USB flash drive to save pictures and videos Connect 5G WLAN module to transfer video wirelessly in real time |
| SD | Comply with SD103.O standard and SD card could be inserted for video and images saving | Comply with SD103.O standard and SD card could be inserted for video and images saving |
| HDMI | Comply with HDMI1.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors | Comply with HDMI1.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
| Other Specifications for HDMI Output | ||
| UI Operation | With USB Mouse | |
| Image Capture | JPEG Format with 5M Resolution in SD Card(XCAM1080PHB) | JPEG Format with 5M Resolution in SD Card(XCAM1080PHB) |
| Video Record | ASF Format 1080P 30fps in SD Card | ASF Format 1080P 30fps in SD Card |
| Camera Control Panel | Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control | Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control |
| Toolbar | Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function | Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function |
